IBM 5155 Portable Computer

The IBM 5155 - The Portable PC
The Portable PC was IBM's first carry-around PC. It still needed to be plugged in to work and weighed 30lbs, so it was quite a chore to carry around. Introduced in 1984, it offered an XT in a small box. It used the same motherboard as the XT but included a 9" Amber screen built into the case. The keyboard attached to the front of the case making it very simple to carry around, if you could handle the weight of it.

IBM 5155 Portable PC Stock Specifications
System Unit Including 83-key Light-Weight Keyboard
8088 processor, 4.77mhz
256kb Memory (Upgradeable to 640k)
5.25" 360k Floppy Drive (Option for second)
9" Integrated Amber Display

Introduced in Feb. 1984 and discontinued in Apr. 1986
Our model was manufactured on the 10th June 1984

Serial No: 6450302 and was very kindly donated by Mr G S Cope



Manufacturer: IBM
Date: 1st June 1984

Other Systems Related To IBM 5155 Portable Computer:

Item Manufacturer Date
IBM 5150 with CGA Monitor IBM Unknown
IBM System 370 Control Panel IBM 1970
IBM 370/138 IBM 30th June 1976
IBM Displaywriter IBM 1980
IBM 5161 IBM 1981
IBM 5150 IBM 1st September 1981
IBM 5160 XT IBM 1st January 1983
IBM 5170 / PC AT IBM 1984
IBM 5140 Convertible Computer IBM April 1986
IBM PS/2 Model 70 IBM 1987
IBM PS/2 Model 30 286 IBM April 1987
IBM PS/2 Model 30 (FD/HD) IBM April 1987
IBM PS/2 Model 30 (Dual FD) IBM April 1987
IBM PS/2 Model 80 (8580-071) IBM 2nd April 1987
IBM PS/2 Model 55SX IBM October 1987
IBM PS/1 IBM 1990
IBM RS/6000 Model 550L IBM 1990
IBM Model 8573-121 IBM January 1990
IBM RS/6000 320 IBM 15th February 1990
IBM PS/2 Note IBM 1991
IBM PS/2 Model 95 (8595) IBM 1991
IBM ThinkPad 2523-710T IBM 1993
IBM RISC System/6000 250 IBM 1993
IBM ThinkPad 701CS IBM 1995
IBM ThinkPad 755CEX IBM March 1995
IBM RS/6000 SP2 Type 7025 IBM 1996
IBM ThinkPad 365XD IBM 1996
IBM RS/6000 Model 7043 604e IBM 1998
IBM 8363 NetVisa Thin Client IBM November 2000
IBM ThinkPad R30 2656 IBM 2001
IBM Thinkpad 2628-STG IBM 2001

This exhibit has a reference ID of CH1782. Please quote this reference ID in any communication with the Centre for Computing History.

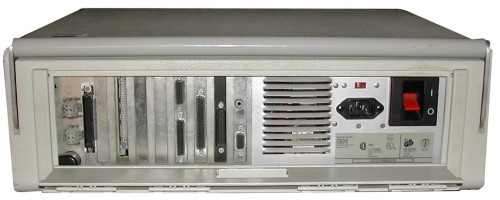

IBM 5155 Portable Computer
