Part No. 23164

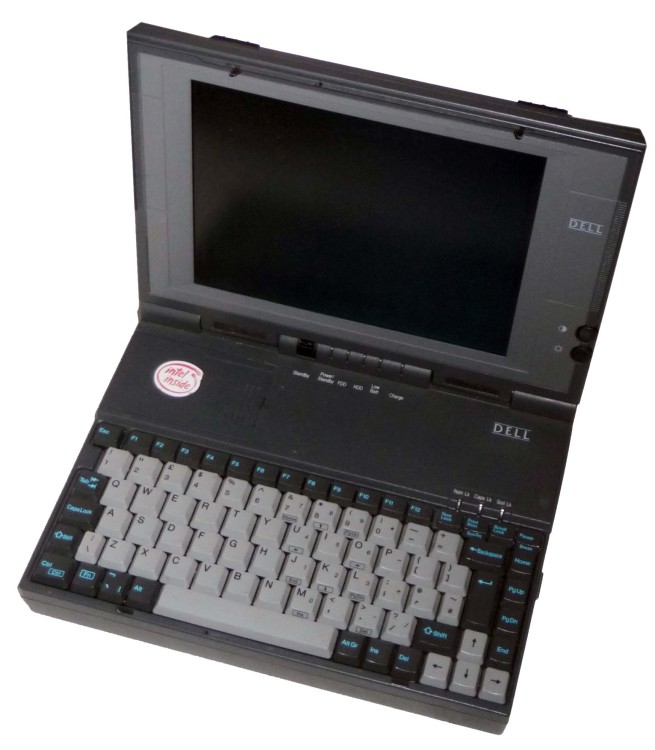

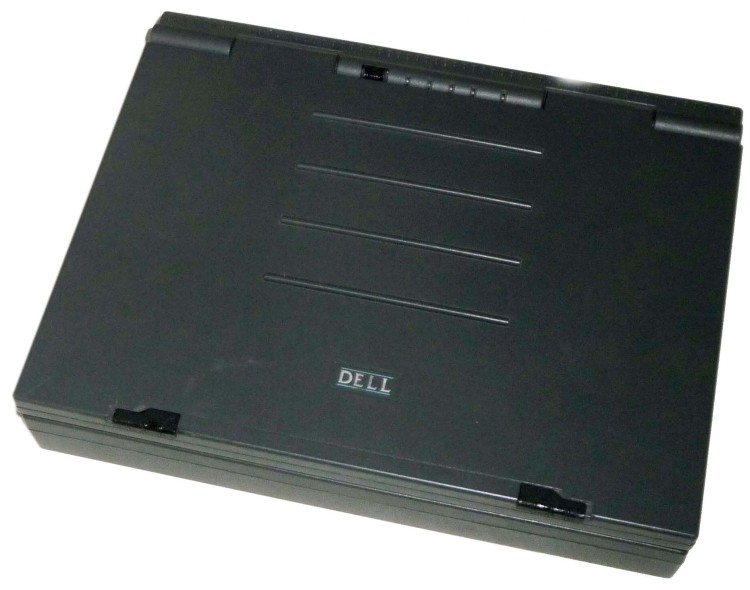

The Dell 325N notebook computer is identical to the Dell 325NC notebook computer except for the LCD (including the latches).
The Dell 325N's TSN
LCD supports up to 32 shades of gray with 640 x 400-pixel resolution. The Dell 325NC's TSN full-color VGA display supports 16 colors at 640 x 480,
256 colors at 640 x 400, or 256 colors at 320 x 20
Microprocessor type - 80386 SL-25
Microprocessor speeds - 25, 12.5, 6.25, or 3.125 MHz
Standby mode speed - 2 MHz
System chip set - Intel i386 SL SuperSet chip
I/O bus speed - 8 MHz
Data bus width - 16 bits
Diskette drive - DMA2
Flash EPROM - 128 KB
Cache - 64 KB, 4-way set associative
Memory Standard base built-in RAM - 4 MB
Maximum system board RAM - 12 MB
Memory module sockets - 2
Memory module types:
Memory access time - 70 ns
External Ports
PS/2-style keyboard/keypad - 6-pin mini-DIN
PS/2-compatible mouse - 6-pin mini-DIN
Video (VGA) - DB15-hole connector
Serial - DB9-pin connector
Parallel - DB25-hole connector (multiplexed)
Internal Ports
IDE hard-disk drive - notebook standard
Diskette drive - built-in
Proprietary internal serial - custom modem
Video
Video controller - WD 90C22
Video memory - 256-KB DRAM
Optional connector - external VGA monitor
LCD
325NC - TSN full-color VGA
Manufacturer (both) - Sharp
Display area
325N - 14.4 x 19.2 cm (5.7 x 7.6 inches)
325NC - 13.7 x 18.2 cm (5.4 x 7.2 inches)
Height (viewing area)
325N - 14.4 cm (5.7 inches)
325NC - 13.7 cm (5.39 inches)
Width (viewing area)
325N - 19.2 cm (7.6 inches)
325NC - 18.2 cm (7.18 inches)
Diagonal (viewing area)
325N - 24.0 cm (9.45 inches)
325NC - 22.8 cm (8.98 inches)
Manufacturer: Dell
Date: 1985
