Apple Macintosh PowerBook 520C



The PowerBook 500 series (codenamed Blackbird, which it shared with the older Macintosh IIfx) was a range of Apple Macintosh PowerBook portable computers first introduced by Apple Computer with the 540c model on 16 May 1994. The 500 series was the first laptop computer to use a trackpad instead of a trackball as a built-in pointing device and the first to have Ethernet networking built-in.

It was the first PowerBook series to use a Motorola 68LC040 CPU (simultaneous with Duo 280) and be upgradeable to the PowerPC architecture via a swap out CPU daughter card (with the PowerPC and 68040 upgrades for sale), use 9.5" Dual Scan passive color/B&W displays, 16bit stereo sound with stereo speakers, have an expansion bay, PC Card capability, two battery bays (and a ten minute sleep/clock battery, which allowed for main batteries to be swapped out while in sleep mode), full size keyboard with F1-F12 function keys, be able to sleep while connected to an external monitor and have a battery contact cover included on the actual batteries. It included a single serial port which could be to connect to a serial printer or a network via Apple's LocalTalk. In another first, it also included an AAUI port for connecting to non-LocalTalk (usually Ethernet) networks.

The 500 series was discontinued completely with the introduction of the ill-fated PowerBook 5300. The PowerBook 190 was the de facto successor to the 500 and continued the only 68LC040 processor offering as the low-end of the PPC-based PowerBook family.

Introduction Date: May 16, 1994 Discontinued Date: September 16, 1995
Processor Speed: 25 MHz Processor Type: 68LC040
Details: This model has a 32-bit processor and a 32-bit data path. Sometimes this model is designated as having a 50 MHz processor, since the clock input runs at 50 MHz. However, the processor itself is not "clock doubled," so technically it only is a 25 MHz processor.
System Bus Speed: 25 MHz Cache Bus Speed: N/A
ROM/Firmware Type: Macintosh ROM ROM/Firmware Size: 2 MB
RAM Type: DRAM Card Min. RAM Speed: 70 ns
Standard RAM: 4 MB, 12 MB Maximum RAM: 36 MB
Video Card: Dedicated VRAM Type: Onboard
Standard VRAM: 512k Maximum VRAM: 512k
Built-in Display: 9.5" Color Native Resolution: 640x480
Details: 9.5" color dual-scan (8-bit, 256 colors) LCD. An upgrade to an active-matrix color display also was available (M3063LL/A).
Standard Hard Drive: 160, 240, 320 MB* Int. HD Interface: SCSI

Apple Family number: M4880



Manufacturer: Apple
Date: 16th May 1994

Other Systems Related To Apple Macintosh PowerBook 520C:

Item Manufacturer Date
Apple II Apple 5th June 1977
Apple II Plus Apple 1978
Apple II Europlus Apple 1978
Apple III Apple June 1980
Apple Lisa 2/10 Apple January 1983
Apple IIe Apple January 1983
Apple Macintosh M0001 128K upgraded to 512K Apple 28th January 1984
Apple IIc Apple April 1984
Apple Macintosh 128K Apple September 1984
Apple Macintosh 512k Apple 9th October 1984
Apple Macintosh Plus Apple 10th January 1986
Apple Macintosh Plus 1MB Apple 10th January 1986
Apple II GS "Woz" edition Apple 15th September 1986
Apple II GS Apple 15th September 1986
Apple IIe Platinum Apple January 1987
Apple Macintosh SE Apple March 1987
Apple Macintosh SE/30 (Douglas Adams) Apple March 1987
Apple Macintosh SE/30 Apple 1989
Apple Macintosh IIcx Apple 7th March 1989
Apple Macintosh Portable Apple 1st September 1989
Apple Macintosh IIci Apple 20th September 1989
Apple Mac IIfx Apple 19th March 1990
Apple Macintosh LC Apple 15th October 1990
Apple Macintosh Classic Apple 15th October 1990
Apple Macintosh IIsi Apple 15th October 1990
Apple Macintosh Performa 400 Apple 1992
Apple Mac LCII Apple 1st January 1992
Apple Macintosh Quadra 950 Apple 18th May 1992
Apple Macintosh PowerBook 145 Apple 3rd August 1992
Apple Macintosh Performa 200 Apple 14th September 1992
Apple Macintosh PowerBook 160 Apple October 1992
Apple Powerbook Duo 230 Apple October 1992
Apple Macintosh PowerBook 180 Apple 19th October 1992
Apple Mac LCIII Apple 10th February 1993
Apple Macintosh PowerBook 165C Apple 10th February 1993
Apple Macintosh Color Classic Apple 10th February 1993
Apple Macintosh PowerBook 180C Apple June 1993
Apple Macintosh PowerBook 145B Apple July 1993
Apple Newton MessagePad Apple 3rd August 1993
Apple Macintosh LC475 Apple 21st October 1993
Apple Macintosh Quadra 650 Apple 21st October 1993
Apple Macintosh Performa 450 Apple 4th December 1993
Apple Power Macintosh 7100/66 Apple March 1994
Apple Newton MessagePad 110 Apple 4th March 1994
Apple Newton MessagePad 120 Apple 1st April 1994
Apple Macintosh PowerBook 150 Apple 18th July 1994
Apple Macintosh Performa 630 Apple 18th July 1994
Apple Macintosh PowerBook 5300cs Apple 1995
Apple Macintosh Performa 5300 Apple 1995
Apple Power Macintosh 6100/60 Apple 3rd January 1995
Apple Macintosh Performa 5200CD Apple 3rd April 1995
Apple eMate 300 Prototype designated A2015 Apple 1996
Apple Macintosh Performa 5400/180 Apple February 1996
Apple Macintosh Performa 6400/200 Apple 7th August 1996
Apple Macintosh Twentieth Anniversary Edition Apple 1997
Apple Powerbook 3400c/200 Apple February 1997
Apple Macintosh Performa 5500/225 Apple 17th February 1997
Apple eMate Apple 7th March 1997
Apple Newton MessagePad 2000 Apple 21st March 1997
Apple iMac G3 (Tray Loading) Apple 15th August 1998
Apple iMac G3 DV (Slot Loading) Apple 15th August 1998
Apple Power Macintosh G3 300 Apple 5th January 1999
Apple Macintosh PowerBook G3 Apple May 1999
Apple iBook G3/300 Apple 21st July 1999
Apple Power Macintosh G4 400 Apple 31st August 1999
Apple iMac G3/350 (Slot Loading - Blueberry) Apple 5th October 1999
Apple Macintosh G4 Cube (M7886) Apple July 2000
Apple iMac G3 M5521 Indigo Apple 2001
Apple iBook M6497 Apple 2001
Apple iMac G3/500 Apple 22nd February 2001
Apple iMac G4 Apple 2002
Apple iMac G4 Apple 2002
Apple iMac G4/800 Apple 17th July 2002
Apple eMac G4/1.0 (ATI) Apple 2003
Apple Power Macintosh G4 1.42 DP (FW 800) Apple 28th January 2003
Apple iMac G5 Apple 31st August 2004
Mac Mini A1103 Apple Computers 22nd January 2005
Apple Macintosh PowerBook G4 Model A1106 Apple October 2005

This exhibit has a reference ID of CH26489. Please quote this reference ID in any communication with the Centre for Computing History.

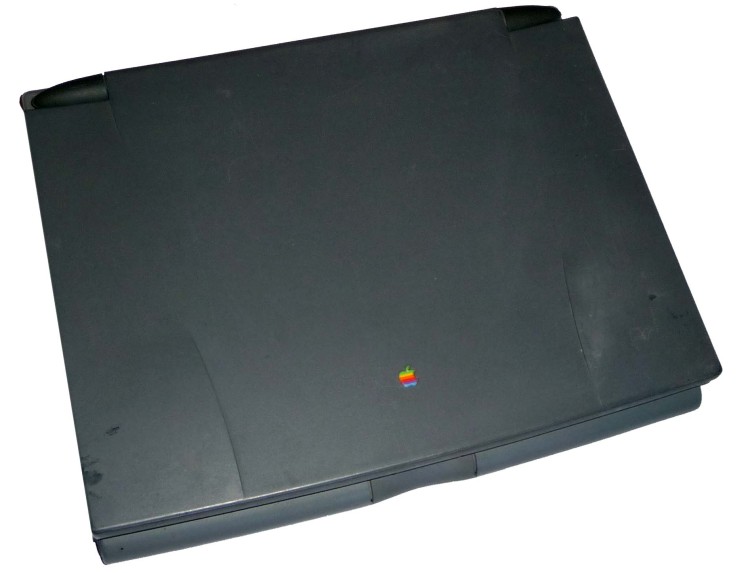

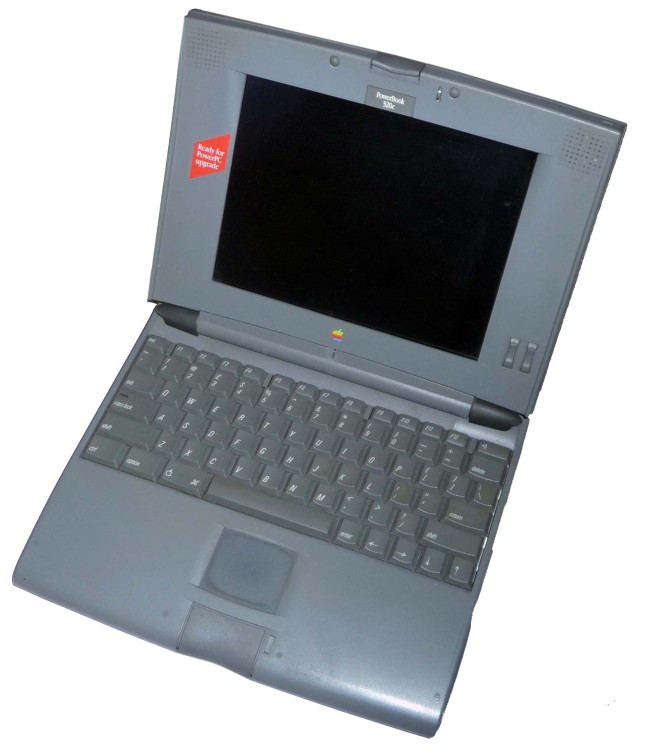

Apple Macintosh PowerBook 520C
