SAGE Computer Circuit Diagrams

Twenty-one circuit diagrams detailing various circuits in SAGE Computer machines.

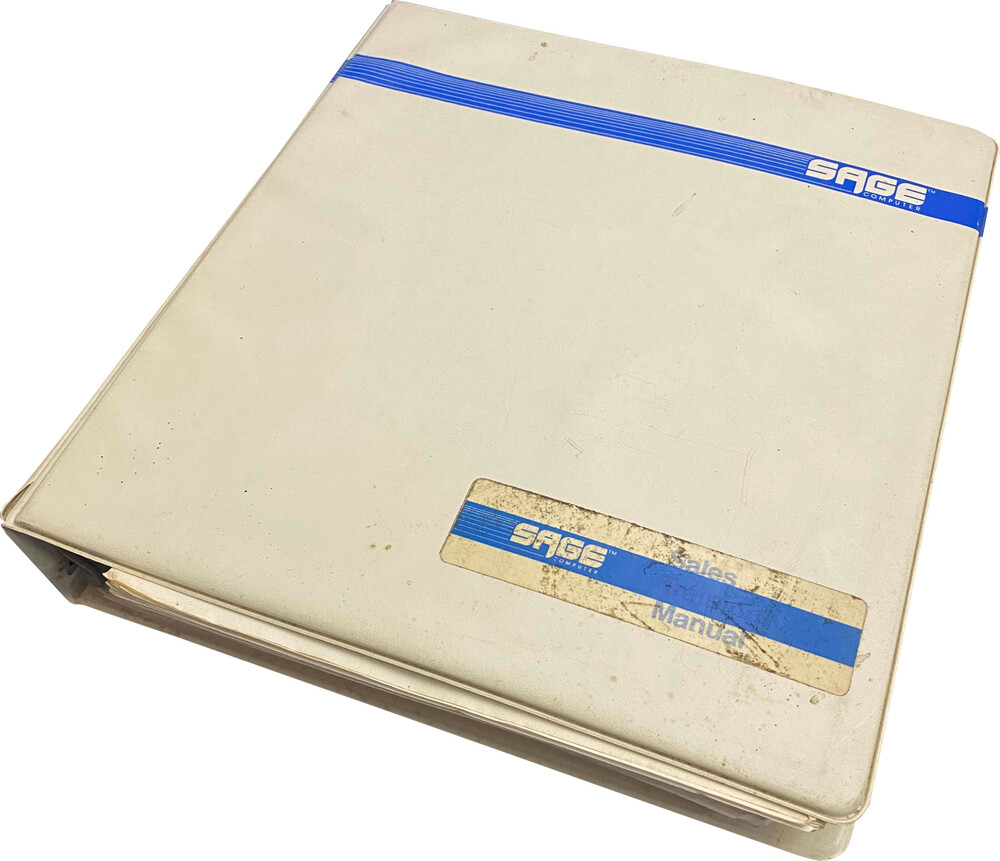

These diagrams are kept in a SAGE branded folder with two other items: the SAGE Diagnostic Guide and Stride Micro IV.21 release notes (Stride Micro being a later name of SAGE).  The folder includes a CD-ROM with further information.

21 pages.

Date : 1982

Creator : SAGE

Format : A5 sheets

This exhibit has a reference ID of CH39883. Please quote this reference ID in any communication with the Centre for Computing History.
Article: SAGE Computer Circuit Diagrams

This document has been scanned and is available to view online.
Please note that copyright is retained by the original rights holder.
File Size: 8.35 MB
