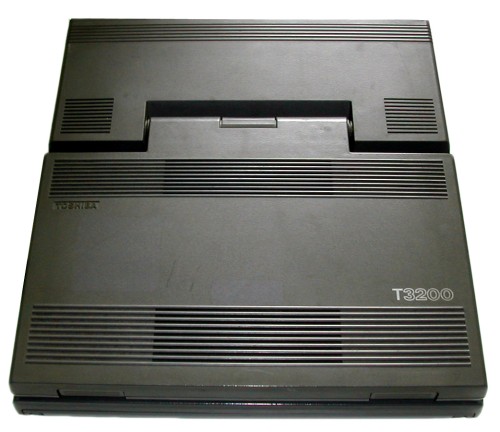

Toshiba T3200

Toshiba said in 1987
"Toshiba knows that in the PC world bigger isn't always better. And Toshiba proves it again with the Toshiba T3200. The Spacesaver. A fast portable with expansion slots. Full size keyboard. Separate numeric keypad. Mobility.

Power. Capacity. Speed. Full size desktop function in an elegant and compact package. And speed has never looked so beautiful. Inside the portable T3200 is a powerful, fast, and expandable full function computer. Not only a high speed 12 MHz 80286 microprocessor but also a fast 40 MB hard disk. And EGA graphics as standard. A high resolution variable contrast gas plasma display and optional memory expansion to 4 Megabytes - without using a slot. The full size keyboard has a separate numeric keypad. Two expansion slots are standard. Fit a network card. A bus mouse. Mainframe communications. Graphics processor. Or a modem. Or any other expansion board from a wide range. And the complete computer can always be folded and locked away to provide the complete security that desktops lack.

The Toshiba T3200. The Spacesaver. Another wonder from Toshiba."

SPECIFICATION
Processor
Intel 80286 - 12 MHz. Optional 80287-8 math co-processor.
--------------------------------------------------------------------------------
Memory
1024 KB standard. 640 KB may be used for MS-DOS and 384 KB as expanded memory (Lotus/ Intel/ Microsoft standard), as virtual disk, or as extended memory. Optional 3 MB memory expansion card for total RAM of 4 MB.
--------------------------------------------------------------------------------
Diskette Drives
One built-in 3.5" 720 KB diskette drive. A second 5.25" 360 KB diskette drive can be connected.
--------------------------------------------------------------------------------
Hard Disk
A fast built-in 3.5" 40 MB (formatted capacity) hard disk.
--------------------------------------------------------------------------------
Display
High resolution EGA compatible gas plasma with variable contrast and variable brightness. Can display up to 4 gray scales. Display can also support CGA, Hercules, and 640 by 400 resolution. Maximum resolution supported is 720 by 400.
--------------------------------------------------------------------------------
Keyboard
Sculptured 85 key with separate numeric keypad.
--------------------------------------------------------------------------------
Expansion slots
One full size 16/8 bit slot and one half size 8 bit slot.
--------------------------------------------------------------------------------
Interfaces
RS-232C serial
Centronics parallel
Colour display (RGB)
External diskette drive
External keyboard
--------------------------------------------------------------------------------
Real Time Clock/ Calendar
Standard - backed up by long life lithium battery.
--------------------------------------------------------------------------------
Operating System
MS-DOS 3.2
EMS
PC LAN support
BASIC version 3.2 option
Windows version 1.1 option
--------------------------------------------------------------------------------
Measurements
370 x 395 x 99 mm (W x D x H)
--------------------------------------------------------------------------------
Weight
8.5 kg
--------------------------------------------------------------------------------
Power Supply
110/220 volts, 100W, switchable

Our example is a working model and was very kindly donated by Robert Jayes. It is in excellent condition and is complete with a soft case.
The Model number of the T3200 is PA7039UK
with a serial number of 08712567

Manufacturer: Toshiba
Date: 1987
