Simtec Electronics USB Interface

 Home > Browse Our Collection > Computers > Acorn Computers > Acorn Archimedes Peripherals > Simtec Electronics USB Interface

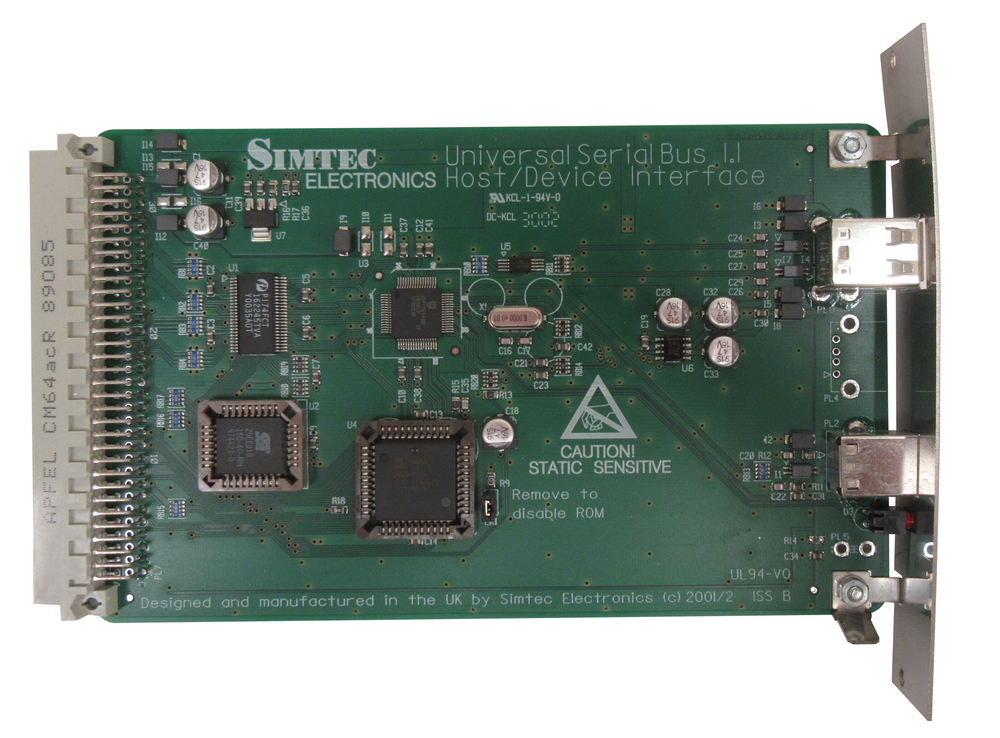

The Simtec USB interface is a 16 bit podule with 2 host ports and a device port. The USB interface works with most Acorn RISC OS computers from the A300/400 via the A5000 to the RiscPC. and is compatible with RISC OS 3.1 and higher The main features of the USB interface are:

  • Dual function podule with 16bit EASI space compatibility
  • Philips ISP1161A USB 1.1 compliant host controller with 2 port root hub
  • 128KB of user re-programmable flash ROM. Reprogramming utility (!Snafu) supplied.
  • Two root hub host ports, with power switching ensuring compatibility with the podule specification
  • Full over-currrent and ESD discharge protection for reliable operation during plugging and unplugging of devices
  • High/low speed multi-function device port with concurrent host and device operation (not supported in software)
  • Mature and proven hardware design.

The Universal Expansion card Fitting instructions are available HERE .

The documentation and software for the USB Interface are still available from the Simtec web site under legacy products

Date : 2001

Manufacturer : Simtec

Format : Expansion Board

Physical Description : Expansion board

This exhibit has a reference ID of CH54122. Please quote this reference ID in any communication with the Centre for Computing History.


Scan of Document: Simtec Electronics USB Interface

Click on the Image For Detail
