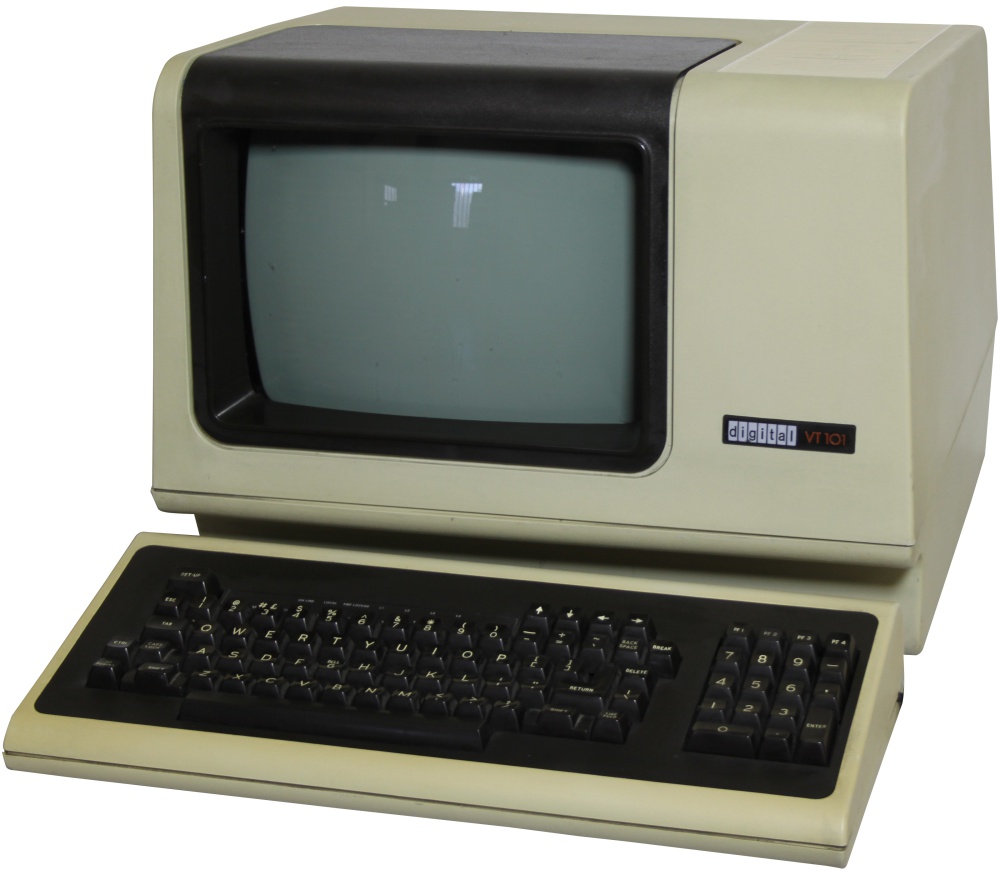

Digital DEC VT-101

Not strictly a computer, but a computer terminal which has no inbuilt processing capability or storage.

These were used to enter and view data on DEC Minicomputer systems such as the PDP11 over an RS232 serial connection.

1978. Identical in appearance to the original VT100 (1977). Adds local echo, which was needed for using the IBM mainframes in linemode (this was before we had 3270/ASCII protocol converters like the IBM Series/1 or 7171).
Construction:          Monitor + detachable keyboard
Display:               24x80 or 14x132 character cells
Character matrix:      7x9 with descenders
Screen size:           12" diagonal (8" x 4.5" active display)
Character set:         Complete US ASCII (128 codes)
Keys:                  65 keys in ANSI X4.14-1971 typewriter layout
Auxilliary keypad:     18 keys (digits, arrows, function keys)
Visual indicators:     7 LEDs
Interface:             RS-232/V.24
Flow control:          Xon/Xoff
Communication Speeds:  75,110,150,300,600,1200,2400,4800,9600,19200 bps
Dimensions:            14.5"x18"14.25" (monitor), 3.5"x18"x8" (keyboard)
Minimum table depth:   20.25"
Weight:                41 pounds


Reference Number : VT101

Date : 1st January 1978

Manufacturer : DEC

pdp11 pdp8
pdp11 pdp8
This exhibit has a reference ID of CH178. Please quote this reference ID in any communication with the Centre for Computing History.


Scan of Document: Digital DEC VT-101

Click on the Image For Detail
