Apple eMac G4/1.0 (ATI)

PowerMac4,4 - Model A1002 - EMC 1955

The eMac, short for education Mac, is a Macintosh desktop computer made by Apple Inc. It was originally aimed at the education market, but was later made available as a cheaper mass market alternative to Apple's second-generation LCD display iMac.

The eMac design closely resembles the first-generation iMac. Compared to the first iMac, eMacs feature a PowerPC G4 processor that is significantly faster than the previous generation G3 processors, as well as a 17-inch flat CRT display. Unlike the iMac G3, however, the eMac is not meant to be portable as it weighs 50 pounds and lacks a carrying handle

The Apple eMac G4/1.0 (ATI Graphics) features a 1.0 GHz PowerPC 7445 (G4) processor with the AltiVec "Velocity Engine" vector processing unit and a 256k on chip level 2 cache, 128 MB or 256 MB of PC133 SDRAM, a 60 GB or 80 GB Ultra ATA/66 hard drive (the low-end M9252LL/A revision introduced October 22, 2003 has a 40 GB drive), a tray-loading "Combo" or "SuperDrive" drive, ATI Radeon 7500 graphics with AGP 4X support and 32 MB of DDR SDRAM, as well as support for AirPort Extreme (not pre-installed) in an all-in-one case with a 17.0" (16.0" viewable area) CRT display (resolution support up to 1280x960 in 24-bit colour).

The eMac G4/1.0 (ATI Graphics) shipped with an ice white Apple "Pro" keyboard and mouse, and could be configured with either MacOS 9.2 or MacOS X 10.2* as the default operating system. Custom configurations also were available.

Introduction Date: May 6, 2003* Discontinued Date: April 13, 2004*
Processor Speed: 1.0 GHz Processor Type: PowerPC 7445 (G4)
Details: The PowerPC G4 includes the AltiVec "Velocity Engine" vector processor.
Processors: 1 Geekbench: 541
RAM Type: PC133 SDRAM Min. RAM Speed: 7 ns
Standard RAM: 128 MB, 256 MB Maximum RAM: 1 GB
Standard VRAM: 32 MB Maximum VRAM: 32 MB
Built-in Display: 17.0" Flat CRT Native Resolution: 1024x768*
Standard Optical: 8X "Combo Drive"* Standard Disk: None
Details: M8950LL/A shipped with a DVD-ROM/CD-RW combo drive that "reads DVDs at up to 8x speed, writes CD-R discs at up to 32x speed, writes CD-RW discs at up to 10x speed, [and] reads CDs at up to 32x speed", and M8951LL/A shipped with a DVD-R/CD-RW SuperDrive that "writes DVD-R discs at up to 4x speed, reads DVDs at up to 8x speed, writes CD-R discs at up to 16x speed,
Standard Modem: 56k v.92 Standard Ethernet: 10/100Base-T
Standard AirPort: 802.11b/g (Optional) Standard Bluetooth: None
USB Ports: 3 (1.1) Firewire Ports: 2 (400)
Incl. Keyboard: Apple Pro Keyboard Incl. Input: Apple Pro Mouse
Case Type: All-in-One Form Factor: eMac
Apple Order No: M8950LL/A* Apple Subfamily: eMac ATI
Apple Model No: A1002 (EMC 1955) Model ID: PowerMac4,4
Pre-Installed MacOS: 9.2.2* & X 10.2.5 (6J73) Maximum MacOS: X 10.5.8
MacOS 9 Support: Boot/Classic Mode* Windows Support: Emulation Only
All models are capable of using Mac OS 9 applications within the Mac OS X "Classic" environment provided with Mac OS X 10.4.11 "Tiger" and lower ("Classic" is not supported starting with Mac OS X 10.5 "Leopard").
Dimensions: 15.8 x 15.8 x 17.1 Avg. Weight: 50 lbs. (22.7 kg)
Original Price: US$999, US$1299*

Our machine is the A1002 EMC 1955 together with the original keyboard, mouse and documentation

Manufacturer: Apple
Date: 2003

Apple eMac G4/1.0 (ATI) Manuals:

Item Manufacturer Date
InterMedia Owners Guide 1989
eMac User Guide 2003

Magazines RELATED to Apple eMac G4/1.0 (ATI) in our Library

Item Manufacturer Date
Call-A.P.P.L.E. - September 1983 September 1983
Hard Core October 1983 Hard Core October 1983
Acorn User - June 1989 27-05-2009

Other Systems Related To Apple eMac G4/1.0 (ATI):

Item Manufacturer Date
Apple II Apple 5th June 1977
Apple II Plus Apple 1978
Apple II Europlus Apple 1978
Apple III Apple June 1980
Apple Lisa 2/10 Apple January 1983
Apple IIe Apple January 1983
Apple Macintosh M0001 128K upgraded to 512K Apple 28th January 1984
Apple IIc Apple April 1984
Apple Macintosh 128K Apple September 1984
Apple Macintosh 512k Apple 9th October 1984
Apple Macintosh Plus Apple 10th January 1986
Apple Macintosh Plus 1MB Apple 10th January 1986
Apple II GS "Woz" edition Apple 15th September 1986
Apple II GS Apple 15th September 1986
Apple IIe Platinum Apple January 1987
Apple Macintosh SE Apple March 1987
Apple Macintosh SE/30 (Douglas Adams) Apple March 1987
Apple Macintosh SE/30 Apple 1989
Apple Macintosh IIcx Apple 7th March 1989
Apple Macintosh Portable Apple 1st September 1989
Apple Macintosh IIci Apple 20th September 1989
Apple Mac IIfx Apple 19th March 1990
Apple Macintosh LC Apple 15th October 1990
Apple Macintosh Classic Apple 15th October 1990
Apple Macintosh IIsi Apple 15th October 1990
Apple Macintosh Performa 400 Apple 1992
Apple Mac LCII Apple 1st January 1992
Apple Macintosh Quadra 950 Apple 18th May 1992
Apple Macintosh PowerBook 145 Apple 3rd August 1992
Apple Macintosh Performa 200 Apple 14th September 1992
Apple Macintosh PowerBook 160 Apple October 1992
Apple Powerbook Duo 230 Apple October 1992
Apple Macintosh PowerBook 180 Apple 19th October 1992
Apple Mac LCIII Apple 10th February 1993
Apple Macintosh PowerBook 165C Apple 10th February 1993
Apple Macintosh Colour Classic Apple 10th February 1993
Apple Macintosh PowerBook 180C Apple June 1993
Apple Macintosh PowerBook 145B Apple July 1993
Apple Newton MessagePad Apple 3rd August 1993
Apple Macintosh LC475 Apple 21st October 1993
Apple Macintosh Quadra 650 Apple 21st October 1993
Apple Macintosh Performa 450 Apple 4th December 1993
Apple Power Macintosh 7100/66 Apple March 1994
Apple Newton MessagePad 110 Apple 4th March 1994
Apple Newton MessagePad 120 Apple 1st April 1994
Apple Macintosh PowerBook 520C Apple 16th May 1994
Apple Macintosh PowerBook 150 Apple 18th July 1994
Apple Macintosh Performa 630 Apple 18th July 1994
Apple Macintosh PowerBook 5300cs Apple 1995
Apple Macintosh Performa 5300 Apple 1995
Apple Power Macintosh 6100/60 Apple 3rd January 1995
Apple Macintosh Performa 5200CD Apple 3rd April 1995
Apple eMate 300 Prototype designated A2015 Apple 1996
Apple Macintosh Performa 5400/180 Apple February 1996
Apple Macintosh Performa 6400/200 Apple 7th August 1996
Apple Macintosh Twentieth Anniversary Edition Apple 1997
Apple Powerbook 3400c/200 Apple February 1997
Apple Macintosh Performa 5500/225 Apple 17th February 1997
Apple eMate Apple 7th March 1997
Apple Newton MessagePad 2000 Apple 21st March 1997
Apple iMac G3 (Tray Loading) Apple 15th August 1998
Apple iMac G3 DV (Slot Loading) Apple 15th August 1998
Apple iMac G3 (Tray Loading, Red) Apple 15th August 1998
Apple iMac G3 (Tray Loading, Blue) Apple 15th August 1998
Apple Power Macintosh G3 300 Apple 5th January 1999
Apple Macintosh PowerBook G3 Apple May 1999
Apple Macintosh PowerBook G3/400 Apple May 1999
Apple iBook G3/300 Apple 21st July 1999
Apple Power Macintosh G4 400 Apple 31st August 1999
Apple iMac G3/350 (Slot Loading - Blueberry) Apple 5th October 1999
Apple Macintosh G4 Cube (M7886) Apple July 2000
Apple iMac G3 M5521 Indigo Apple 2001
Apple iBook M6497 Apple 2001
Apple iMac G3/500 Apple 22nd February 2001
Apple iMac G4 Apple 2002
Apple iMac G4 Apple 2002
Apple iMac G4/800 Apple 17th July 2002
Apple Power Macintosh G4 1.42 DP (FW 800) Apple 28th January 2003
Apple iMac G5 Apple 31st August 2004
Mac Mini A1103 Apple Computers 22nd January 2005
Apple Macintosh PowerBook G4 Model A1106 Apple October 2005

This exhibit has a reference ID of CH21149. Please quote this reference ID in any communication with the Centre for Computing History.

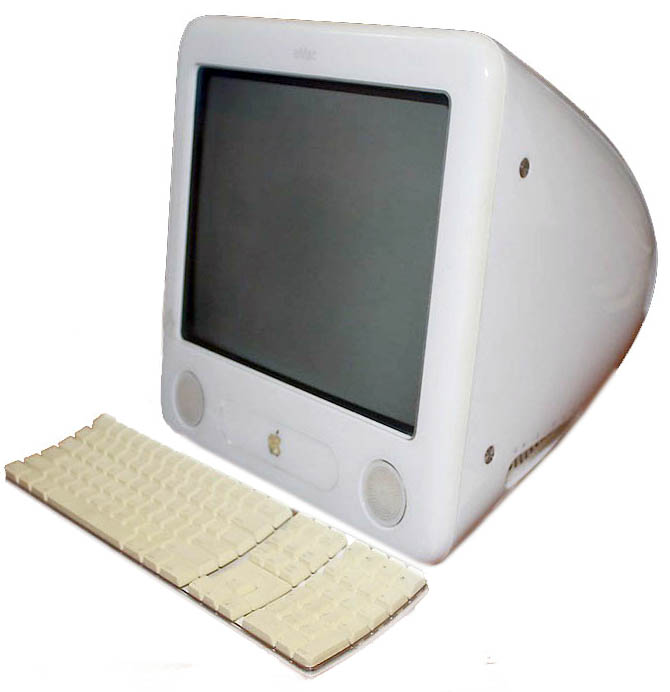

Apple eMac G4/1.0 (ATI)
