Apple Power Macintosh G4 1.42 DP (FW 800)

The Apple Power Macintosh G4/1.42 DP (Firewire 800) features dual 1.42 GHz PowerPC 7455 (G4) processors each with the AltiVec "Velocity Engine" vector processing unit, 256k "on chip" level 2 cache, and 2 MB of DDR SRAM level 3 backside cache. It shipped configured with 512 MB of RAM, a 120 GB Ultra ATA/100 hard drive, a 4X DVD-R/CD-RW "SuperDrive", and a 4X AGP ATI Radeon 9000 Pro graphics card with 64 MB of DDR SDRAM. AirPort Extreme (802.11g) and Bluetooth 1.1 were available by custom configuration.

The Power Macintosh G4 (Firewire 800) series is similar to the "Mirrored Drive Doors" series that it replaced -- both share an identical case design complete with "mirrored drive doors" and the same bus speeds (133 MHz or 167 MHz) and RAM (PC2100 and PC2700), for example -- but the "Firewire 800" models have faster optical drives and add a single Firewire 800 port along with support for onboard AirPort Extreme (802.11g) and Bluetooth 1.1.

Introduction Date: January 28, 2003 Discontinued Date: June 23, 2003
Processor Speed: 1.42 GHz Processor Type: PowerPC 7455 (G4)x2
Details: The PowerPC G4 includes the AltiVec "Velocity Engine" vector
Processors: 2 Geekbench: 1224
Processor Upgrade: MDD G4 Daughtercard FPU: Integrated
System Bus Speed: 167 MHz Cache Bus Speed: 1.42 GHz* (Built-in)
ROM/Firmware Type: Open Firmware ROM/Firmware Size: 1 MB
L1 Cache: 64k L2/L3 Cache: 256k (on chip), 2 MB
RAM Type: PC2700 DDR SDRAM Min. RAM Speed: 333 MHz
Details: Supports 184-pin PC2700 (333 MHz) DDR SDRAM.
Standard RAM: 512 MB Maximum RAM: 2 GB*
Standard Hard Drive: 120 GB (7200 RPM) Int. HD Interface: Ultra ATA/100*
Standard Optical: 4X "SuperDrive" Standard Disk: None
Details: Apple reported that the 4X DVD-R/CD-RW SuperDrive "writes DVDs at 4X, reads DVDs at 8X, writes CD-R at 16X, writes CD-RW at 8X, and reads CDs at 32X". By custom order, it also could be configured with a second optical drive. Both optical drives use a EIDE (ATA-3) bus.
Standard Modem: 56k v.92 Standard Ethernet: 10/100/1000Base-T
Standard AirPort: 802.11b/g (Optional) Standard Bluetooth: 1.1 (Optional)
USB Ports: 2 (1.1) Firewire Ports: 2 (400), 1 (800)
Details: USB 1.1 ports are dual channel. Two Firewire "400" ports and one Firewire "800" port.
Includes Keyboard: Apple Pro Keyboard Incl. Input: Apple Pro Mouse
Case Type: Tower Form Factor: Power Mac G4 (MDD)
Apple Model No: M8570 (EMC 1914) Model ID: PowerMac3,6
Battery Type: 3.6V Lithium Battery Life: N/A
Pre-Installed MacOS: X 10.2.3 Maximum MacOS: X 10.5.8
MacOS 9 Support: Classic Mode Only* Windows Support: Emulation Only
Details: *This model is capable of using Mac OS 9 applications within the Mac OS X "Classic" environment provided with Mac OS X 10.4.11 "Tiger" and lower ("Classic" is not supported starting with Mac OS X 10.5 "Leopard"). It cannot boot into Mac OS 9.
Dimensions: 17.0 x 8.9 x 18.4 Avg. Weight: 42.0 lbs. (19.1 kg)
Original Price: US$2699 Est. Current Retail: US$350-US$500
Details: Please note that on average the estimated current retail pricing of used systems is updated twice a year (please refer to the

Thanks to for the specification

Our machine has the model No. M8570 EMC1914 was very kindly donated by William Henley

Manufacturer: Apple
Date: 28th January 2003

Other Systems Related To Apple Power Macintosh G4 1.42 DP (FW 800):

Item Manufacturer Date
Apple II Apple 5th June 1977
Apple II Plus Apple 1978
Apple II Europlus Apple 1978
Apple III Apple June 1980
Apple Lisa 2/10 Apple January 1983
Apple IIe Apple January 1983
Apple Macintosh M0001 128K upgraded to 512K Apple 28th January 1984
Apple IIc Apple April 1984
Apple Macintosh 128K Apple September 1984
Apple Macintosh 512k Apple 9th October 1984
Apple Macintosh Plus Apple 10th January 1986
Apple Macintosh Plus 1MB Apple 10th January 1986
Apple II GS "Woz" edition Apple 15th September 1986
Apple II GS Apple 15th September 1986
Apple IIe Platinum Apple January 1987
Apple Macintosh SE Apple March 1987
Apple Macintosh SE/30 (Douglas Adams) Apple March 1987
Apple Macintosh SE/30 Apple 1989
Apple Macintosh IIcx Apple 7th March 1989
Apple Macintosh Portable Apple 1st September 1989
Apple Macintosh IIci Apple 20th September 1989
Apple Mac IIfx Apple 19th March 1990
Apple Macintosh LC Apple 15th October 1990
Apple Macintosh Classic Apple 15th October 1990
Apple Macintosh IIsi Apple 15th October 1990
Apple Macintosh Performa 400 Apple 1992
Apple Mac LCII Apple 1st January 1992
Apple Macintosh Quadra 950 Apple 18th May 1992
Apple Macintosh PowerBook 145 Apple 3rd August 1992
Apple Macintosh Performa 200 Apple 14th September 1992
Apple Macintosh PowerBook 160 Apple October 1992
Apple Powerbook Duo 230 Apple October 1992
Apple Macintosh PowerBook 180 Apple 19th October 1992
Apple Mac LCIII Apple 10th February 1993
Apple Macintosh PowerBook 165C Apple 10th February 1993
Apple Macintosh Color Classic Apple 10th February 1993
Apple Macintosh PowerBook 180C Apple June 1993
Apple Macintosh PowerBook 145B Apple July 1993
Apple Newton MessagePad Apple 3rd August 1993
Apple Macintosh LC475 Apple 21st October 1993
Apple Macintosh Quadra 650 Apple 21st October 1993
Apple Macintosh Performa 450 Apple 4th December 1993
Apple Power Macintosh 7100/66 Apple March 1994
Apple Newton MessagePad 110 Apple 4th March 1994
Apple Newton MessagePad 120 Apple 1st April 1994
Apple Macintosh PowerBook 520C Apple 16th May 1994
Apple Macintosh PowerBook 150 Apple 18th July 1994
Apple Macintosh Performa 630 Apple 18th July 1994
Apple Macintosh PowerBook 5300cs Apple 1995
Apple Macintosh Performa 5300 Apple 1995
Apple Power Macintosh 6100/60 Apple 3rd January 1995
Apple Macintosh Performa 5200CD Apple 3rd April 1995
Apple eMate 300 Prototype designated A2015 Apple 1996
Apple Macintosh Performa 5400/180 Apple February 1996
Apple Macintosh Performa 6400/200 Apple 7th August 1996
Apple Macintosh Twentieth Anniversary Edition Apple 1997
Apple Powerbook 3400c/200 Apple February 1997
Apple Macintosh Performa 5500/225 Apple 17th February 1997
Apple eMate Apple 7th March 1997
Apple Newton MessagePad 2000 Apple 21st March 1997
Apple iMac G3 (Tray Loading) Apple 15th August 1998
Apple iMac G3 DV (Slot Loading) Apple 15th August 1998
Apple iMac G3 (Tray Loading, Red) Apple 15th August 1998
Apple iMac G3 (Tray Loading, Blue) Apple 15th August 1998
Apple Power Macintosh G3 300 Apple 5th January 1999
Apple Macintosh PowerBook G3 Apple May 1999
Apple Macintosh PowerBook G3/400 Apple May 1999
Apple iBook G3/300 Apple 21st July 1999
Apple Power Macintosh G4 400 Apple 31st August 1999
Apple iMac G3/350 (Slot Loading - Blueberry) Apple 5th October 1999
Apple Macintosh G4 Cube (M7886) Apple July 2000
Apple iMac G3 M5521 Indigo Apple 2001
Apple iBook M6497 Apple 2001
Apple iMac G3/500 Apple 22nd February 2001
Apple iMac G4 Apple 2002
Apple iMac G4 Apple 2002
Apple iMac G4/800 Apple 17th July 2002
Apple eMac G4/1.0 (ATI) Apple 2003
Apple iMac G5 Apple 31st August 2004
Mac Mini A1103 Apple Computers 22nd January 2005
Apple Macintosh PowerBook G4 Model A1106 Apple October 2005

This exhibit has a reference ID of CH29455. Please quote this reference ID in any communication with the Centre for Computing History.

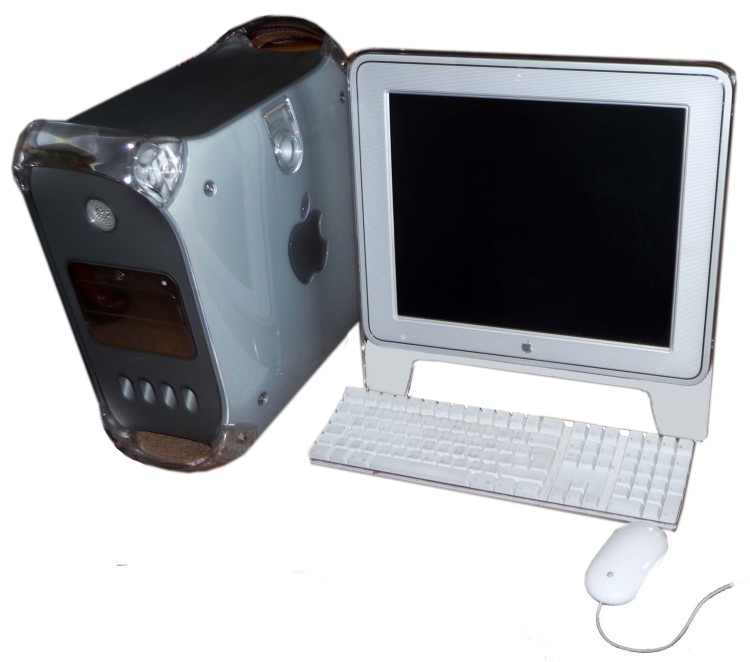

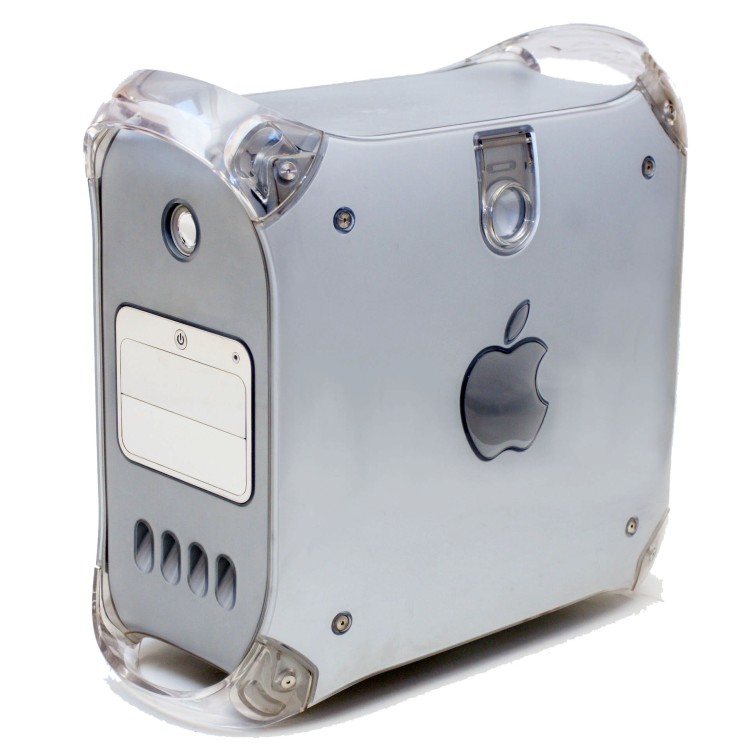

Apple Power Macintosh G4 1.42 DP (FW 800)
