TMS6100 Speech Emulator Upgrade

 Home > Browse Our Collection > Computers > Acorn Computers > Acorn BBC Micro Peripherals > TMS6100 Speech Emulator Upgrade

Texas Instruments created the TMS5220 voice synthesis processor as a means to add realistic speech output to home computers such as the BBC Micro, pinball machines, and children's toys. It acts as a model of the human vocal tract which allows the speech data to be parameterised and hence compressed considerably compared with just storing raw audio samples.

The speech processor can accept data either from a host microprocessor, or from a mask programmed serial ROM - the TMS6100 voice synthesis memory. However, the high cost and minimum order quantities associated with the setup of a mask means that comparatively few TMS6100s were created, and being mask programmed are fixed in operation.

The TMS6100 emulator solves both of these shortfalls by emulating the operation of the original device through the use of a modern 8 bit microcontroller with on board flash memory. When coupled with an original TMS5220 your system can speak once again.

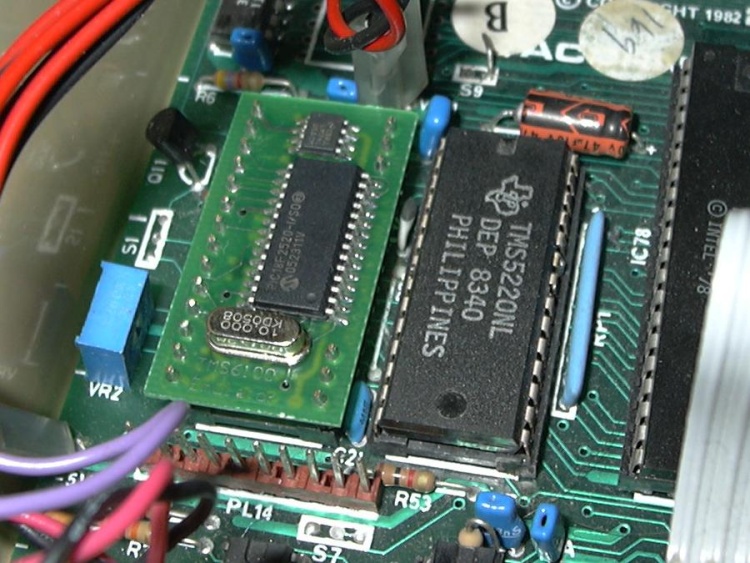

The upgrade kit consists of an original TMS5220 speech processor and TMS6100 emulator, which is a small carrier circuit board the same size as a normal 28 pin chip, along with instructions for fitting into a BBC Model B or Model B+. Except for some early Model B (pre issue 4) motherboards, no soldering is required to install the upgrade.

Date : 1981

Physical Description : TMS5220NL chip TMS6100 emulator

This exhibit has a reference ID of CH35824. Please quote this reference ID in any communication with the Centre for Computing History.

Scan of Document: TMS6100 Speech Emulator Upgrade

Click on the Image For Detail
