Amino AmiNET 103

The Amino AmiNET 103 is a miniature MPEG-2 set-top box for IPTV and video-on-demand applications. It is based on the Linux operating system and can be remotely managed and upgraded (with the appropriate server software).

  • Outputs: Composite Video, Stereo Audio. Standard definition PAL or NTSC.
  • Graphics Resolution: 640x438 (525-line) or 640x512 (625-line), 16 bit RGB colour, 8-bit Alpha blending
  • Codecs: MPEG1 & MPEG2 MP@ML, up to 10Mbps
  • Smart Card Interface: ISO-7816
  • Size: 100 x 34 x 93 mm
  • Construction: One-piece Aluminium Extrusion
  • Power: 5V, 400mA
  • Operating Environment: ETS 300-019-1-3 Class 3.1
  • EMC Conformance: EN55022. FCC Part 15.
  • Safety Approvals: Safety certification to EN60950, and ELSVD. CE, CB and CSA Safety approval

Manufacturer: Amino Communications
Date: 2009



Comment on This Page

Other Systems Related To Amino AmiNET 103:

Item Manufacturer Date
Amino Freedom Amino Communications 2010
Amino Freedom J5001 Amino Communications 2010

This exhibit has a reference ID of CH41564. Please quote this reference ID in any communication with the Centre for Computing History.

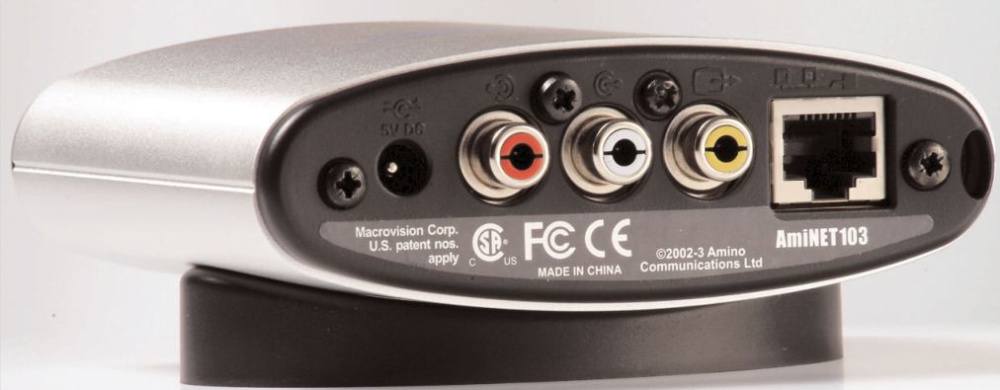

Amino AmiNET 103
