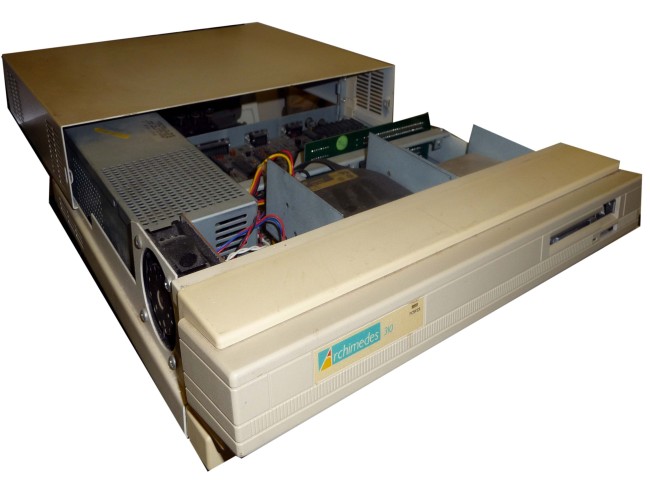

Acorn Archimedes 310

The A305 and A310 were launched in June 1987. It was the first RISC CPU based computer in the world. There were 2 models, the A305 and the A310. The A305 could be upgraded to the A310 specification.

The RISC-based A310 excelled on integer programs, but the lack of FPU showed up in the 'Savage' benchmark, where slow IEEE-754 compatible emulation routines in the C library hurt the performance. Remarkably, the A310 could run Savage in interpreted BASIC in 32.8 seconds, only about 50% slower than the Compaq Deskpro 386 equipped with a 80287 math coprocessor.

The A310 ran an operating system called Arthur. It was based on earlier OS Acorn wrote in 1979 for the BBC Micro, a 6502-based PC. Arthur was quite modern for a PC and included features like modularity between the OS and file system (two different file systems were supported), a graphical user interface (GUI) called Desktop, and a built in scripting language. A310 was installed with an ARM2 processor and 1 MB RAM

From the Archimedes brochure:
"The Archimedes 310 personal workstation - world beating technology in an affordable microcomputer. The Archimedes range of microcomputers represents a British breakthrough in the application of RISC technology to personal computing. Acorn has designed and developed the RISC microchip for the Archimedes range to bring practical benefits to all microcomputer users.

Acclaimed at its launch with the British Microcomputing Awards 'Micro of the Year' title, the Archimedes system has also won the 1988 TOBIE award for Best New Technology Application of the Year. In the words of Personal Computer World magazine, The fact is that the ARM chip is amazing, and the Archimedes which uses it is equally wonderful."

ARM (Acorn RISC Machine) 32-bit microprocessor using Reduced
Instruction Set Computer technology.
A typical execution rate of 4 MIPS (Million Instructions Per Second) makes the
Archimedes system the world's fastest microcomputer in its class to date.
1 Megabyte of fully addressable built-in RAM.
Complex software applications to run from RAM without frequent delays for
disc reading.
Long documents and large quantities of data to be held in memory for faster
512 kbytes of ROM store the complete operating system and the BASIC
programming environment, along with the window driven user interface.
The Archimedes system is ready to run as soon as you switch on. You do not
have to load the operating system from disc.
Storing the operating system in ROM makes more RAM available for

Our model was kindly donated by Roy Childs



Manufacturer: Acorn
Date: 1987
