Media Vision - Thunder Board

 Home > Browse Our Collection > Peripherals > Media Vision > Media Vision - Thunder Board

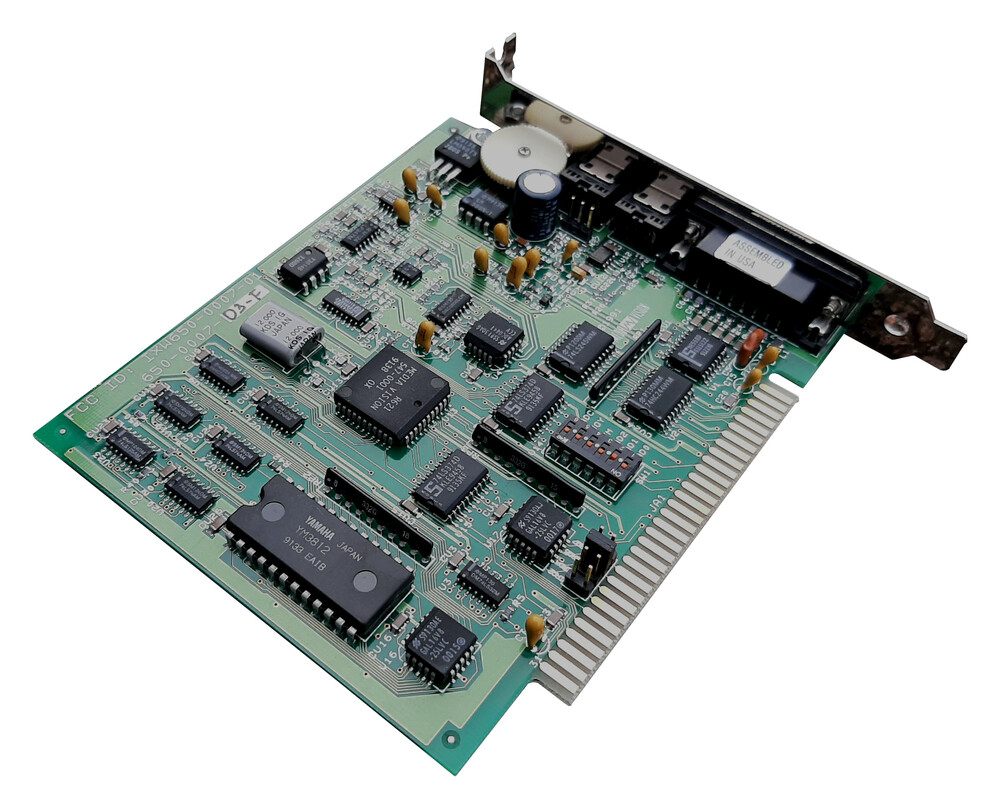

This is an 8 bit sound card for early PC computers. It supports Adlib and Soundblaster compatible games, and has 22Khz digital audio sampling, 11 voice FM Synthesiser, and a joystick port. There is also microphone input, as well as an audio amplifier, volume control, and a good selection of free software including Lemmings, Nova 9 and Lexi Cross.

Also includes disks for Thunder Master - a software package that allows you to record, edit and playback your own sound files.

The card does not support MIDI at all - the joystick port on the back is purely for joysticks when other cards of its time used unused pins on the joystick connector to provide MIDI in and out connections.

The Thunderboard card is essentially a cut down clone of the Soundblaster 1.5.

Date : 1991

Manufacturer : Media Vision

Format : Expansion Board

Physical Description : Card box, Cardboard insert, Expansion board, Thunder Board Program Disk on 5.25-inch disk, Lemmings and Lexi Cross Sample Games on 5.25-inch disk, Thunder Board Nova Sample Game on 3.5-inch disk, Software updates sheet, x2 Special offers sheet, Product offerings sheet, $10 off Lexi-Cross leaflet, Lemmingland leaflet, Nova Interactive demo sheet, Sierra Coupon

This exhibit has a reference ID of CH67161. Please quote this reference ID in any communication with the Centre for Computing History.

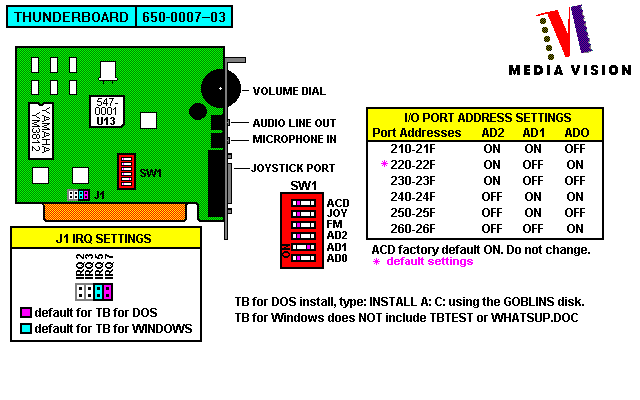

Scan of Document: Media Vision - Thunder Board

Click on the Image For Detail
