TRS-80 Tandy CGP-115

TRS-80 Tandy CGP-115

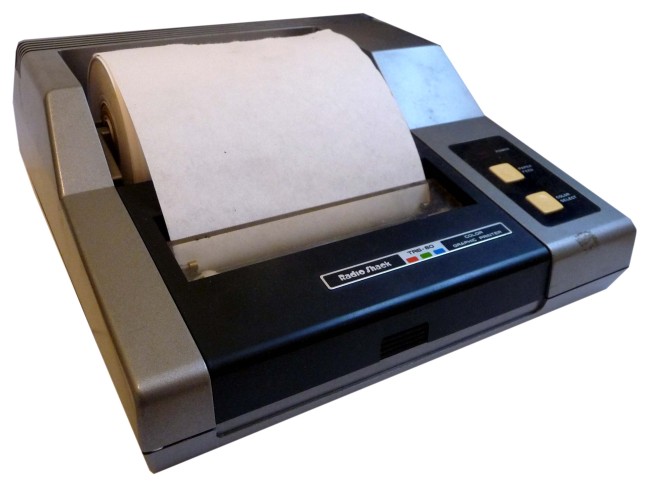

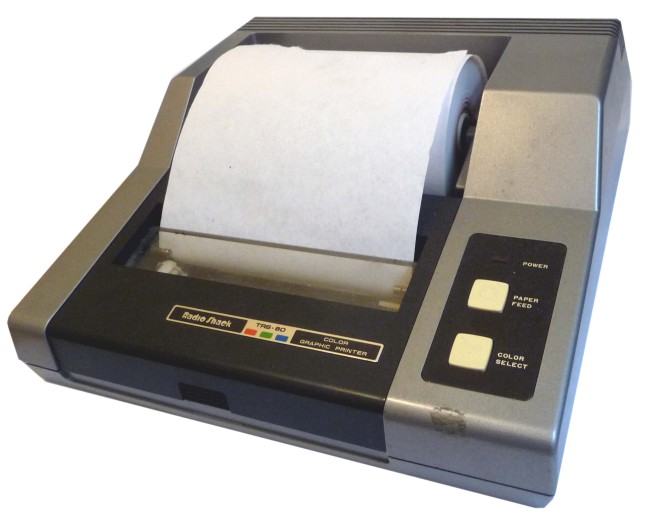

The TRS-80 Tandy CGP-115 Color Printer is  actually a 4-pen color plotter. The glass tubes visible in front of the unit contains the ink pens (Two tubes of Red, Green, Blue and one tube of Black).

Creates graphics in red, blue, green and black, plus prints alphanumerics. Built-in commands simplify drawing and plotting. Text mode prints 40 or 80 characters per line at 12 characters/sec. Software controls additional character sizes and rotation.

Paper Size: 4-1/2″ roll.
Effective Plotting Range: X-axis – 3.8 inches (480 steps), Y-axis – no limit.
Plot Speed: 2.05 inches per second.
Print Speed: 12 characters per second. Characters per Line: 80 or 40 (text mode). Any size from 1 to 80 per line (graphics mode).
Dimensions: 2-15/16 x 8-3/4 x 8-1/2″.
Weight: 1-3/4 pounds.
Power Requirements: 120VAC, 60 Hz, 23 Watts.

The original purchase price was $249.95

Our model has a product number of F1816A ABU and a serial number of SG11500965 and was kindly donated by Barry Kidd
