Apple Macintosh Quadra 650

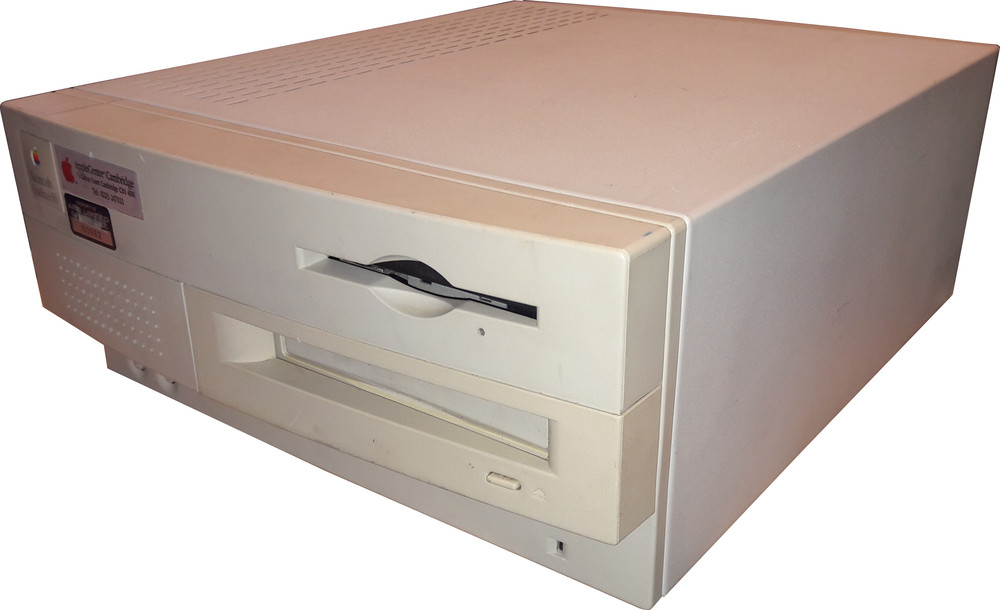

The Quadra 650 had tray-loading CD-ROM drive. The Macintosh Quadra 650 and the Macintosh Centris 650 are two closely-related personal computers that are a part of Apple Computer's Quadra and Centris series of Macintosh computers, respectively. When the Centris 650 was introduced in February 1993 alongside the smaller Centris 610, it was intended as the start of the new midrange Centris line of computers, a niche formerly occupied by the Quadra 700 which was discontinued. However, that proved confusing, and the Centris 650 was renamed to Quadra 650 in October 1993, with the CPU upgraded from a 25 MHz to 33 MHz. The Quadra 650 was discontinued without a direct replacement in September 1994, although the Power Macintosh 7100, introduced a few months earlier, which used the same case as the 650 (originally used on the Macintosh IIvx), had a similar target audience.

Introduction Date:  October 21, 1993  Discontinued Date:  September 12, 1994
Processor Type:  68040  Processor Speed:  33 MHz 1.
Processor Upgrade:  N/A 2.  FPU (Integrated):  68040
System Bus Speed:  33 MHz  Lookaside Bus Speed:  N/A
ROM Size:  1 MB  Data Path:  32-bit
Level 1 Cache:  8k  Level 2 Cache:  N/A
RAM Type:  80 ns 72-pin SIMM  VRAM Type:  80 ns VRAM SIMM
Standard RAM:  8 MB  Maximum RAM:  132 MB, 136 MB
Motherboard RAM:  4 MB, 8 MB 3.  RAM Slots:  4 4.
Standard VRAM:  512k, 1 MB  Maximum VRAM:  1 MB 5.
Standard Hard Drive:  230 MB, 500 MB  Int. Hard Drive Type:  SCSI
Standard CD-ROM:  2X  Standard Disk:  1.44 MB (auto)
Standard Modem:  N/A  Standard Ethernet:  AAUI-15
Case Type:  Desktop  Form Factor:  Macintosh IIvx
Exp. Slots:  3 NuBus, 040 PDS  Exp. Bays (Free):  None
Battery Type:  3.6V Lithium  Battery Life:  N/A
Built-in Display:  N/A  Supported MacOS:  7.1-7.5.1, 7.5.3-8.1
Dimensions:  6.0 x 13.0 x 16.5 6.  Avg. Weight:  25 lbs.
Original Price:  $2350, $2780 US  Est. Current Price:  N/A
Thanks to http://www.everymac.com for the specification

Our Quadra was kindly donated by Bob Sheppard

Introduction Date: October 21, 1993 Discontinued Date: September 12, 1994
Processor Type: 68040 Processor Speed: 33 MHz 1.
Processor Upgrade: N/A 2. FPU (Integrated): 68040
System Bus Speed: 33 MHz Lookaside Bus Speed: N/A
ROM Size: 1 MB Data Path: 32-bit
Level 1 Cache: 8k Level 2 Cache: N/A
RAM Type: 80 ns 72-pin SIMM VRAM Type: 80 ns VRAM SIMM
Standard RAM: 8 MB Maximum RAM: 132 MB, 136 MB
Motherboard RAM: 4 MB, 8 MB 3. RAM Slots: 4 4.
Standard VRAM: 512k, 1 MB Maximum VRAM: 1 MB 5.
Standard Hard Drive: 230 MB, 500 MB Int. Hard Drive Type: SCSI
Standard CD-ROM: 2X Standard Disk: 1.44 MB (auto)
Standard Modem: N/A Standard Ethernet: AAUI-15
Case Type: Desktop Form Factor: Macintosh IIvx
Exp. Slots: 3 NuBus, 040 PDS Exp. Bays (Free): None
Battery Type: 3.6V Lithium Battery Life: N/A
Built-in Display: N/A Supported MacOS: 7.1-7.5.1, 7.5.3-8.1
Dimensions: 6.0 x 13.0 x 16.5 6. Avg. Weight: 25 lbs.
Original Price: $2350, $2780 US Est. Current Price: N/A
Introduction Date: October 21, 1993 Discontinued Date: September 12, 1994
Processor Type: 68040 Processor Speed: 33 MHz 1.
Processor Upgrade: N/A 2. FPU (Integrated): 68040
System Bus Speed: 33 MHz Lookaside Bus Speed: N/A
ROM Size: 1 MB Data Path: 32-bit
Level 1 Cache: 8k Level 2 Cache: N/A
RAM Type: 80 ns 72-pin SIMM VRAM Type: 80 ns VRAM SIMM
Standard RAM: 8 MB Maximum RAM: 132 MB, 136 MB
Motherboard RAM: 4 MB, 8 MB 3. RAM Slots: 4 4.
Standard VRAM: 512k, 1 MB Maximum VRAM: 1 MB 5.
Standard Hard Drive: 230 MB, 500 MB Int. Hard Drive Type: SCSI
Standard CD-ROM: 2X Standard Disk: 1.44 MB (auto)
Standard Modem: N/A Standard Ethernet: AAUI-15
Case Type: Desktop Form Factor: Macintosh IIvx
Exp. Slots: 3 NuBus, 040 PDS Exp. Bays (Free): None
Battery Type: 3.6V Lithium Battery Life: N/A
Built-in Display: N/A Supported MacOS: 7.1-7.5.1, 7.5.3-8.1
Dimensions: 6.0 x 13.0 x 16.5 6. Avg. Weight: 25 lbs.
Original Price: $2350, $2780 US Est. Current Price: N/A
Introduction Date: October 21, 1993 Discontinued Date: September 12, 1994
Processor Type: 68040 Processor Speed: 33 MHz 1.
Processor Upgrade: N/A 2. FPU (Integrated): 68040
System Bus Speed: 33 MHz Lookaside Bus Speed: N/A
ROM Size: 1 MB Data Path: 32-bit
Level 1 Cache: 8k Level 2 Cache: N/A
RAM Type: 80 ns 72-pin SIMM VRAM Type: 80 ns VRAM SIMM
Standard RAM: 8 MB Maximum RAM: 132 MB, 136 MB
Motherboard RAM: 4 MB, 8 MB 3. RAM Slots: 4 4.
Standard VRAM: 512k, 1 MB Maximum VRAM: 1 MB 5.
Standard Hard Drive: 230 MB, 500 MB Int. Hard Drive Type: SCSI
Standard CD-ROM: 2X Standard Disk: 1.44 MB (auto)
Standard Modem: N/A Standard Ethernet: AAUI-15
Case Type: Desktop Form Factor: Macintosh IIvx
Exp. Slots: 3 NuBus, 040 PDS Exp. Bays (Free): None
Battery Type: 3.6V Lithium Battery Life: N/A
Built-in Display: N/A Supported MacOS: 7.1-7.5.1, 7.5.3-8.1
Dimensions: 6.0 x 13.0 x 16.5 6. Avg. Weight: 25 lbs.
Original Price: $2350, $2780 US Est. Current Price: N/A

Manufacturer: Apple
Date: 21st October 1993
