Acorn Electron (Production Mock Up)

 Home > Browse Our Collection > Computers > Acorn Computers > Acorn Electron (Production Mock Up)

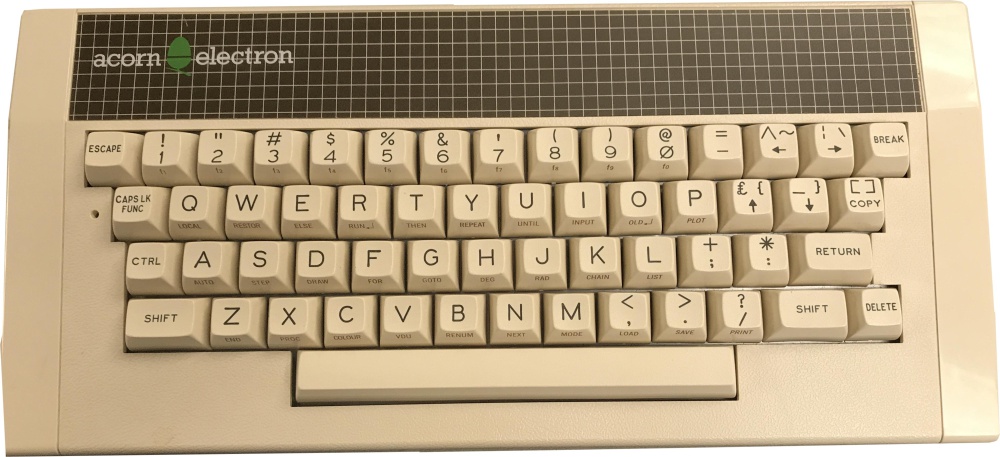

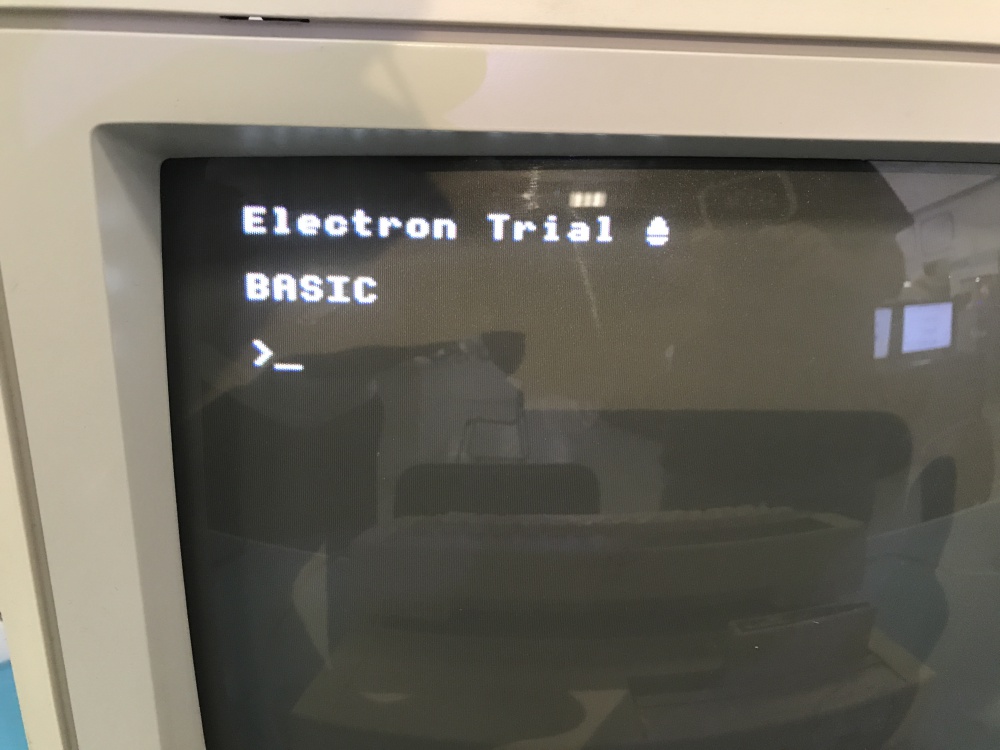

This early model Acorn Electron contains an issue one board with a 16K EPROM marked "ELK 036" replacing the lower BASIC ROM. It has serial number 06-ALA01-0000087, marking it as the 87th machine produced by Acorn's Malaysian plant. When the machine turns on, the usual "Acorn Electron" banner is instead replaced by "Electron Trial".

This boxed unit was a test piece sent back to the UK from the Malaysian factory for approval, and also to test the sturdiness of the packaging.

The instruction manual is deliberately blank, and the User Tape has no cassette and other differences from the retail models are the black lead on the PSU and

It has a serial number of 06-ALA01-0000107, the 06 is the Malaysian designation, the ALA for a trial machine, and 107 for the number of the computer.

This package was donated by Christopher Curry on behalf of Judy Boothroyd

Manufacturer: Acorn Computers Ltd
Date: July 1983

Comment on This Page

Other Systems Related To Acorn Electron (Production Mock Up):

Item Manufacturer Date
Acorn 6502 Microcomputer Board Acorn Computers Ltd 1979
Acorn System 1 Acorn Computers Ltd March 1979
Acorn System 1 (Chris Turner) Acorn Computers Ltd March 1979
Acorn BBC Micro Model A (Issue 2 Board) Acorn Computers Ltd 1981
Busicomputers Prophet 3 Acorn Computers Ltd 1982
Acorn System 4 Acorn Computers Ltd 1982
Acorn System 5 Acorn Computers Ltd 1983
Acorn Electron (Trial ROM From Astec) Acorn Computers Ltd May 1983
Acorn Electron (Trial ROM) Acorn Computers Ltd July 1983
Acorn Econet Terminal Acorn Computers Ltd 1986
Acorn BBC Domesday System Acorn Computers Ltd 1986
Acorn AEH02 Archimedes NSM Acorn Computers Ltd 1987
Acorn Stork Notebook Acorn Computers Ltd 1996
Acorn Fast NC - Serial Number 1 Acorn Computers Ltd 1996

This exhibit has a reference ID of CH67687. Please quote this reference ID in any communication with the Centre for Computing History.
