Toshiba T3100

 Home > Browse Our Collection > Computers > Toshiba > Toshiba T3100
The base T3100, released in 1986, consisted of an 80286 CPU running at 8MHz.
Operating system: Toshiba MS-DOS 2.11 shipped with earlier models
                      Toshiba MS-DOS 3.2 shipped with later models
Software Compatibility
    Compatible with software written for the IBM PC/XT/AT using CGA or
    T3100/AT&T 6300 640 x 400 high resolution graphics mode
    - RGB (CGA) color video port
    - RS-232-C serial port
    - Parallel printer/external diskette
    - Numeric keypad port
    - Toshiba proprietary memory slot
    - Toshiba proprietary  "A" form factor expansion slot
      Display type:       Orange gas plasma
      Display area:       7.5"W x 5.7"H; 9.5" diagonal
      Resolution:         640 x 400
      Contrast:           5 : 1
3.5" 10MB Hard Disk Drive (T3100)
    JVC :                   JD-3812MOTO
    Number of heads:        2
    Number of cylinders:    612 plus 4 spaces
    Average access time:    100ms
    Recording method:       MFM
    TEST/TEST3 setup type:  1
Model No: PA7037UK
Serial No: 07612721

Manufacturer: Toshiba
Date: 1986

Comment on This Page

Magazines RELATED to Toshiba T3100 in our Library

Item Manufacturer Date
Byte January 1988 Jan 1988
Personal Computer World - January 1990 1 Jan 1990

Other Systems Related To Toshiba T3100:

Item Manufacturer Date
Toshiba HX-10 Kit Toshiba 1983
Toshiba HX-10 Toshiba 1983
Toshiba T1200 Toshiba 1987
Toshiba T3200 Toshiba 1987
Toshiba T3200 SXC Toshiba 1987
Toshiba T1000 Toshiba 1987
Toshiba T3100/20 Toshiba 1987
Toshiba T3100e (1) Toshiba 1988
Toshiba T3100e (2) Toshiba 1988
Toshiba 4700CT Toshiba 1990
Toshiba T3300SL/80 Toshiba 1991
Toshiba T5200/100 Toshiba 1st June 1991
Toshiba T2200SX Toshiba 1992
Toshiba T2000SX Toshiba 1992
Toshiba T4400SX Notebook Toshiba 1992
Toshiba T1900C Toshiba 1993
Toshiba T6600C Toshiba 1993
Toshiba T2100 Toshiba 1995
Toshiba Satellite S320CDT 4.0GB Toshiba 1995
Toshiba Tecra 730CDTZ-1EB Toshiba 1996
Toshiba Satellite Pro 420 CDS/810 Toshiba 1996
Toshiba Libretto 100CT Toshiba 17th April 1996
Toshiba Libretto 50CT Toshiba 17th April 1996
Toshiba Libretto 110CT Toshiba 17th April 1996
Toshiba Satellite S4000CDS/4.0 Toshiba 1997
Toshiba Portégé 300CT Toshiba 1997
Toshiba Tecra 8000 Toshiba 1998
Toshiba Satellite Pro 4300 Series - SP4320 Toshiba January 2000
Toshiba Portege R500-10U Toshiba 2008

This exhibit has a reference ID of CH4587. Please quote this reference ID in any communication with the Centre for Computing History.

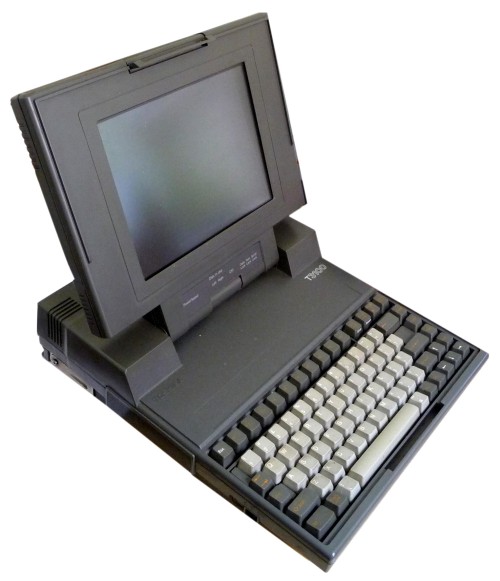

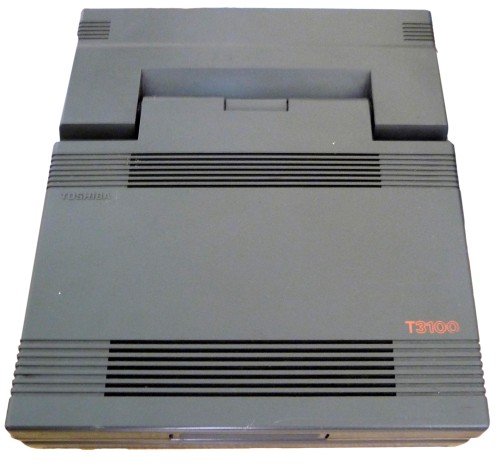

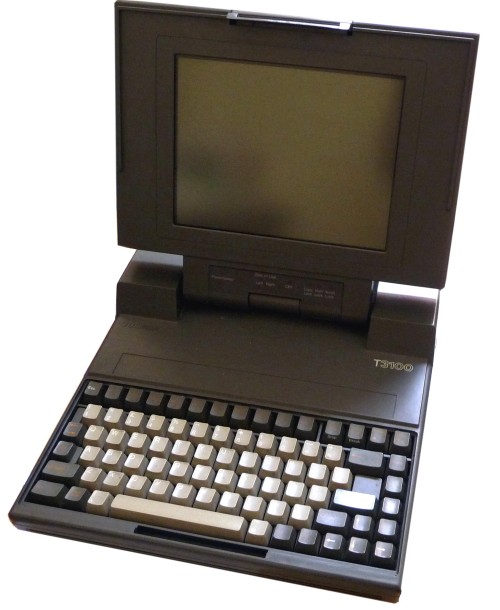

Toshiba T3100
